FIRST1-TX

The perfect entry point into tinting

Highlights

  • QUALITY ON A BUDGET
    Reliable automatic dispensing at a price you can afford
  • ACCURACY YOU CAN DEPEND ON
    The well-established turntable bellows technology delivers consistent accuracy every time
  • READY FOR BUSINESS
    Fast setup, easy maintenance, no calibration necessary
  • SIMPLE AND EFFECTIVE USE
    The ergonomic design and user-friendly controls enable productive daily working

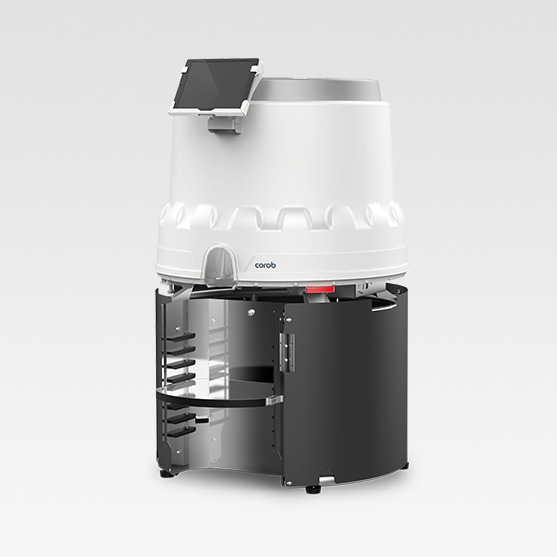

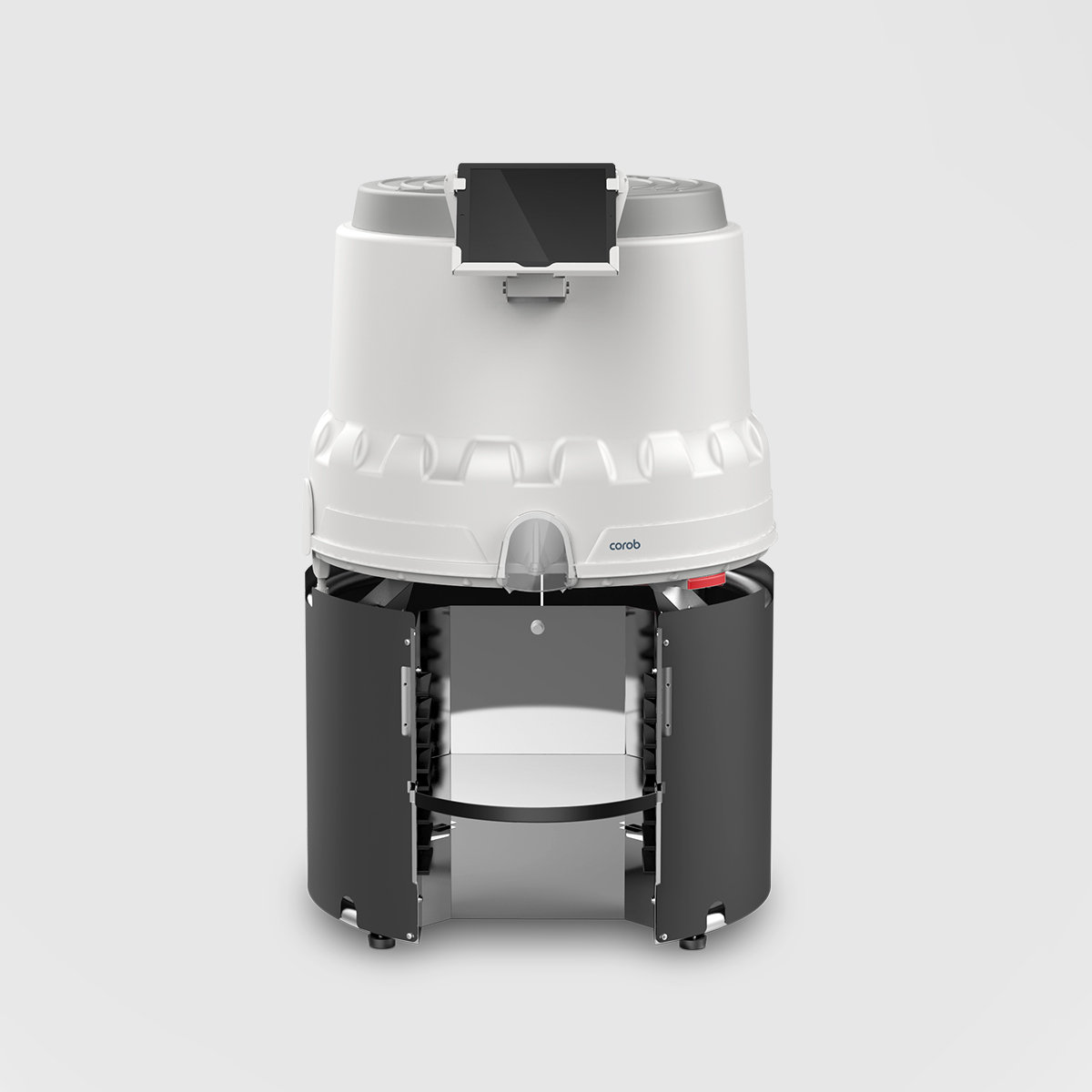

Experience the FIRST1-TX, the COROB automatic turntable dispenser featuring bellows pump technology. This robust and affordable solution is designed to replace manual tinting machines, making them a thing of the past. It is perfect for emerging markets, offering a reliable solution for your dispensing needs.

The FIRST1-TX automatic turntable dispenser is suitable for use with water-based or universal colorants and improves customer satisfaction by providing precise and repeatable on-demand tinted paint orders.

Its bellows pumps technology is free from the mechanical stress between the pump and colorant, and virtually wear-free. This means that the pump can last for a lifetime without needing to be replaced, reducing the need for maintenance.

The practical and cost-effective split packaging approach enables to increase the number of units per shipment and optimize transportation. Furthermore, the quick and easy step-by-step installation process makes it simple to assemble and set up the machine for immediate operation upon arrival.

Other advantages include its overall height, which allows for simplified refilling of colorants and easy access to all the controls and components, and the advanced connectivity management system that enables smart operation through tablets and smartphones.

Technical data

Business environment Growing markets, small paint stores
Volume output Low
Dispensing technology Bellows pump
Dispensing flow Turntable sequential
Circuit flow rate [l/min]* 0.2
Minimum dispensed quantity [fl.oz.] (cc)* 1/384 (0.077)
Valve type Membrane valve
Canister configurations Up to 16
Canister sizes [l] (q-G) 2.5 (2.64 q)
Colorant compatibility Decorative: Water, Universal
Dimensions HxLxD [mm] (in) 1242 x 840 x 1003 (48.9 x 33.0 x 39.5)
Footprint [sqm] (sq ft) 0.84 (9.07)

*Values highly affected by the nature of the colorants and their rheological properties.

Download area

BROCHURE

FIRST1-TX Brochure English

FIRST1-TX Brochure Portuguese

FIRST1-TX Brochure Spanish

DATA SHEET

FIRST1-TX Data sheet English

USER’S MANUAL

FIRST1-TX User's Manual English

FIRST1-TX User's Manual Italian

FIRST1-TX User's Manual Russian

FIRST1-TX User's Manual Greek
