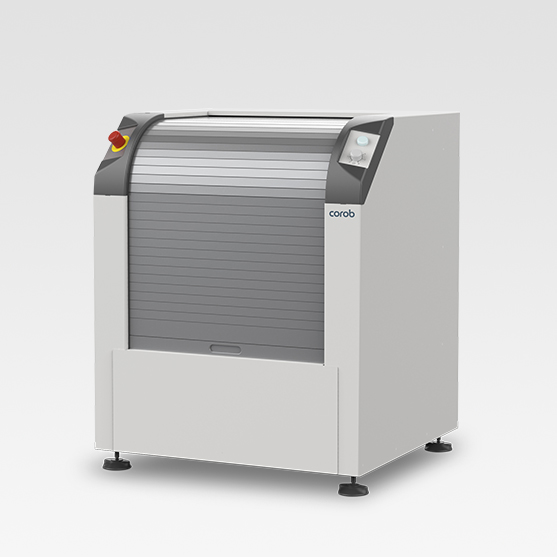

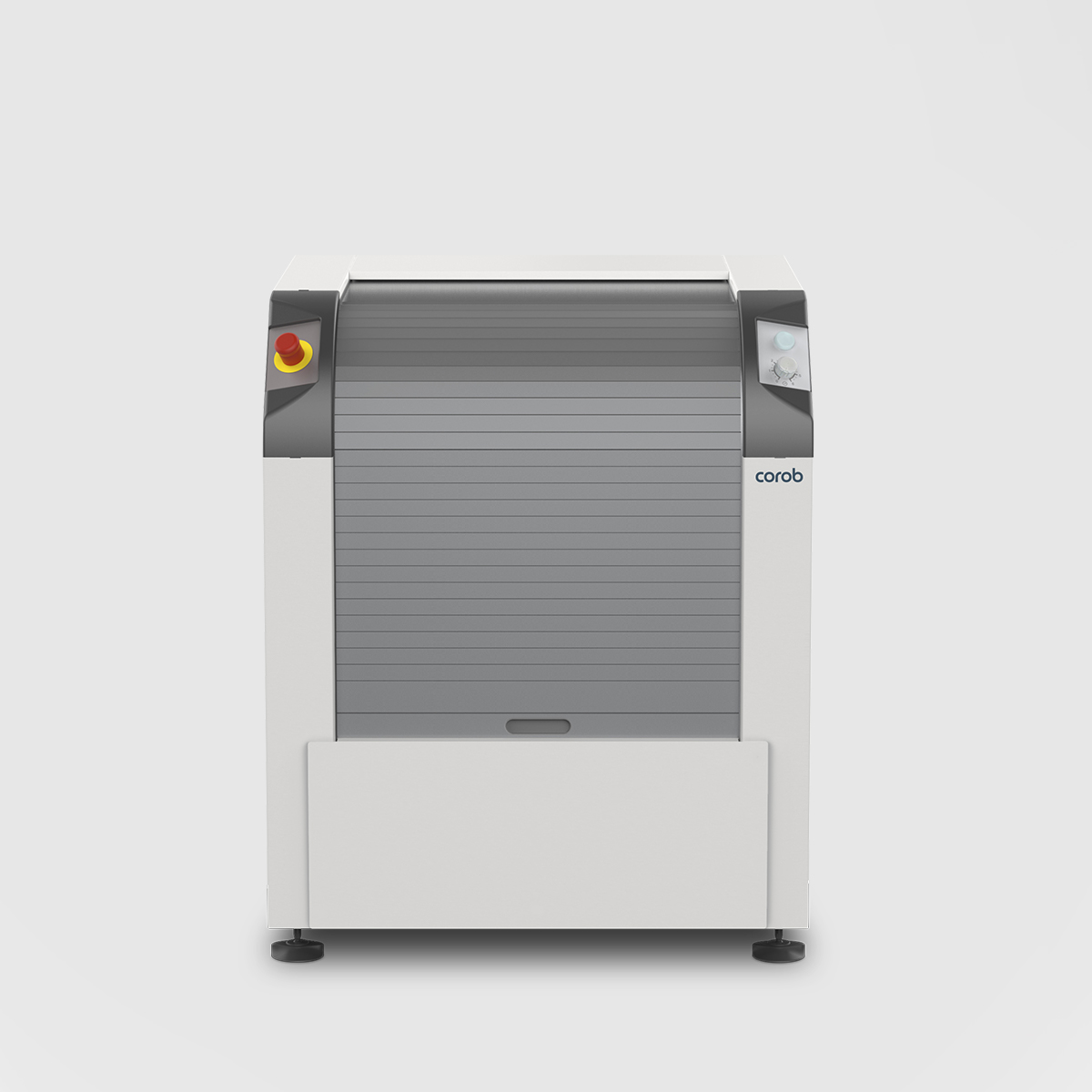

CLEVERmix 20

The robust manual gyroscopic mixer

Highlights

  • COMPACT AND RESISTANT
    Space efficient and built to last, it is the perfect business partner for your point of sale
  • ALWAYS RELIABLE
    Smooth operation even at maximum load and mixing speed
  • OPERATOR-FRIENDLY
    Simple to use with easy clamping system, ergonomic loading height and automatic repositioning

The CLEVERmix 20 gyroscopic manual mixer is a fully customer-oriented product, developed by focusing on the design and ergonomics. The overall compact dimensions and limited footprint make it a perfect match with every type of dispensers used.

The COROB CLEVERmix 20 comes in two compact versions, both of which are designed to last and help streamline your operations. The ST version is a reliable and affordable option that can handle basic tasks with ease, while the PR version includes an incorporated display and keyboard to choose the optimal time and cycle for each task, providing greater flexibility and precision.

Sturdy and resistant metal parts have been used in the most sensitive areas of the moving mechanics to ensure continuous and untroubled operation even at top speed and full load, reducing to a bare minimum the number of necessary interventions.

The manual clamping system is designed with safety and comfort in mind and requires very little strength to operate. The automatic repositioning of the clamping plates at the end of the mixing cycle avoids unnecessary operations: all the operator needs to do is remove the paint can directly.

Technical data

Business environment Paint stores, DIYs
Volume output Low / Medium
Type Manual gyroscopical mixer
Max can weight [kg] (lbs) 35 (77)
Can size [mm] (in) Height: min 100 (3.9) / 89 (3.5) using the can adaptor – max 410 (16.1)
Diameter: max 390 (15.4)
Can type Round / Square / Oval
Mixing motor power [hp] (kW) 0.75 (0.55)
Certification CE/UKCA – ETL
Door type Sliding Shutter
Dimensions (WxDxH) [mm] (in) 805 x 730 x 990 (31.7 x 28.7 x 39)
Footprint [sqm] (sq ft) 0.59 (6.32)
