EVO1ST

The next gen of long-life bellows pump dispenser

Highlights

  • LOW MAINTENANCE
    Worry-free operation thanks to proven technology and advanced control system
  • VALUE FOR MONEY
    Best in class performance at a budget-friendly price
  • CONFIGURABLE
    A wide range of options to match different colorant requirements
  • USER-FRIENDLY
    Easy to use and ergonomic height for convenient can handling

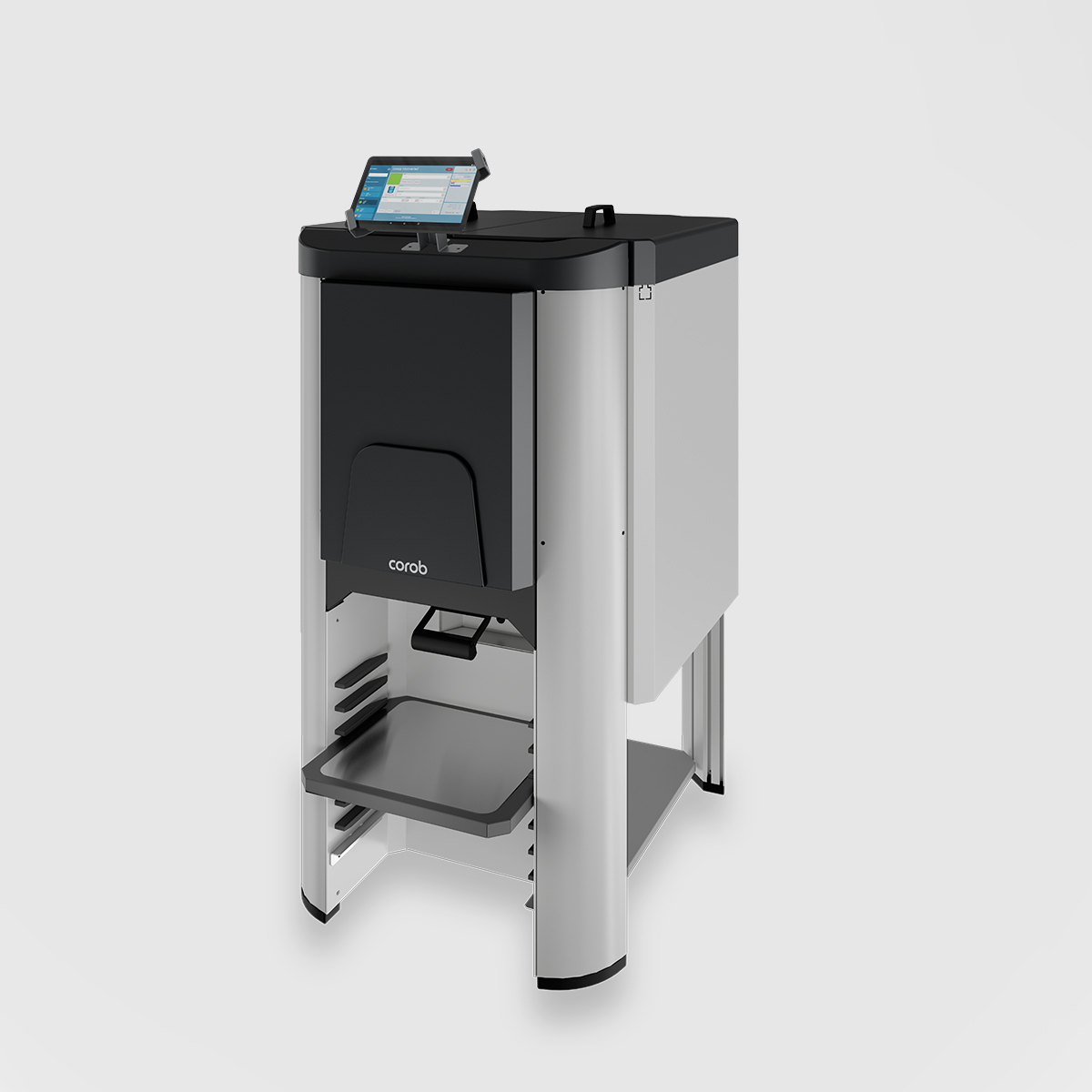

The COROB EVO1ST bellows pump paint dispenser is a cutting-edge improvement on a trusted technology platform known for its robust longevity and requiring minimal maintenance. Ideal for paint stores with low to medium volume output, it can also be enhanced with optional features to meet increased requirements.

With its optimal price/performance ratio, the COROB EVO1ST maximizes return on investment. To meet the demand for speed and productivity during peak hours, we offer optional features such as 6-colorant simultaneous dispensing, higher flow rate and larger 5-liter canisters.

The dispenser performs optimally with Low-No VOC formulations, reducing mistints and improving tint quality. The optional automatic sliding humidifier cap and No-Dry-Nozzle humidifier for water and solvent-based colorants guarantee excellent performance even under difficult climatic conditions, preventing the colorants from drying out and slowing dispensing speed should the colorants become too difficult to pump.

Featuring an operator-friendly height that facilitates can positioning and canister refilling, a simple manual shelf adjustment, and a limited number of components, EVO1ST stands true to its reputation for user-friendliness and straightforward upkeep.

With the ability to handle up to 20 colorants as standard and optionally a larger frame for up to 32, the EVO1ST dispenser is a highly flexible solution that can be configured to meet your business needs in a cost effective manner.

The dispenser’s advanced connectivity management system allows for easy operation through tablets and smartphones, providing a user-friendly and convenient experience.

Technical data

[S] [L]
Business environment Paint stores, DIYs Paint stores, DIYs
Volume output Low / Medium Low / Medium
Dispensing technology Bellows pump Bellows pump
Dispensing flow On-Demand Simultaneous, Simultaneous [optional] On-Demand Simultaneous, Simultaneous [optional]
Circuit flow rate [l/min]* 0.25 [Single pump] – 0.5 [Double pump] 0.25 [Single pump] – 0.5 [Double pump]
Minimum dispensed quantity [fl.oz.] (cc)* 1/576 (0.051) 1/576 (0.051)
Valve type Membrane valve Membrane valve
Canister configurations Up to 20 Up to 32
Canister sizes [l] (q-G) 1.5 (1.58 q) / 2.5 (2.64 q) / 5 (1.32 G) 1.5 (1.58 q) / 2.5 (2.64 q) / 5 (1.32 G)
Colorant compatibility Water, Universal, Solvent Water, Universal, Solvent
Dimensions HxLxD [mm] 1400 x 710 x 910 w/shelf – 860 w/o shelf (55.1 x 28 x 35.8 – 33.8) 1400 x 1060 x 930 w/ shelf – 880 w/o shelf (55.1 x 41.7 x 36.6 – 34.6)
Footprint [sqm] (sq ft) 0.64 (6.8) w/ shelf – 0.61 (6.57) w/o shelf 0.97 (10.5) w/ shelf – 0.93 (10) w/o shelf

*Values highly affected by the nature of the colorants and their rheological properties.
