N50

The most flexible solvent-based dispensing solution for hazardous areas

Highlights

  • +PERFORMANCE
    High output combined with high accuracy dispensing.
  • JUST-IN-TIME PRODUCTION
    Just-in-time manufacturing.
  • RELIABLE
    Consistent and repeatable batch manufacturing.
  • FLEXIBLE
    Integrations of color formulation and production scheduling.

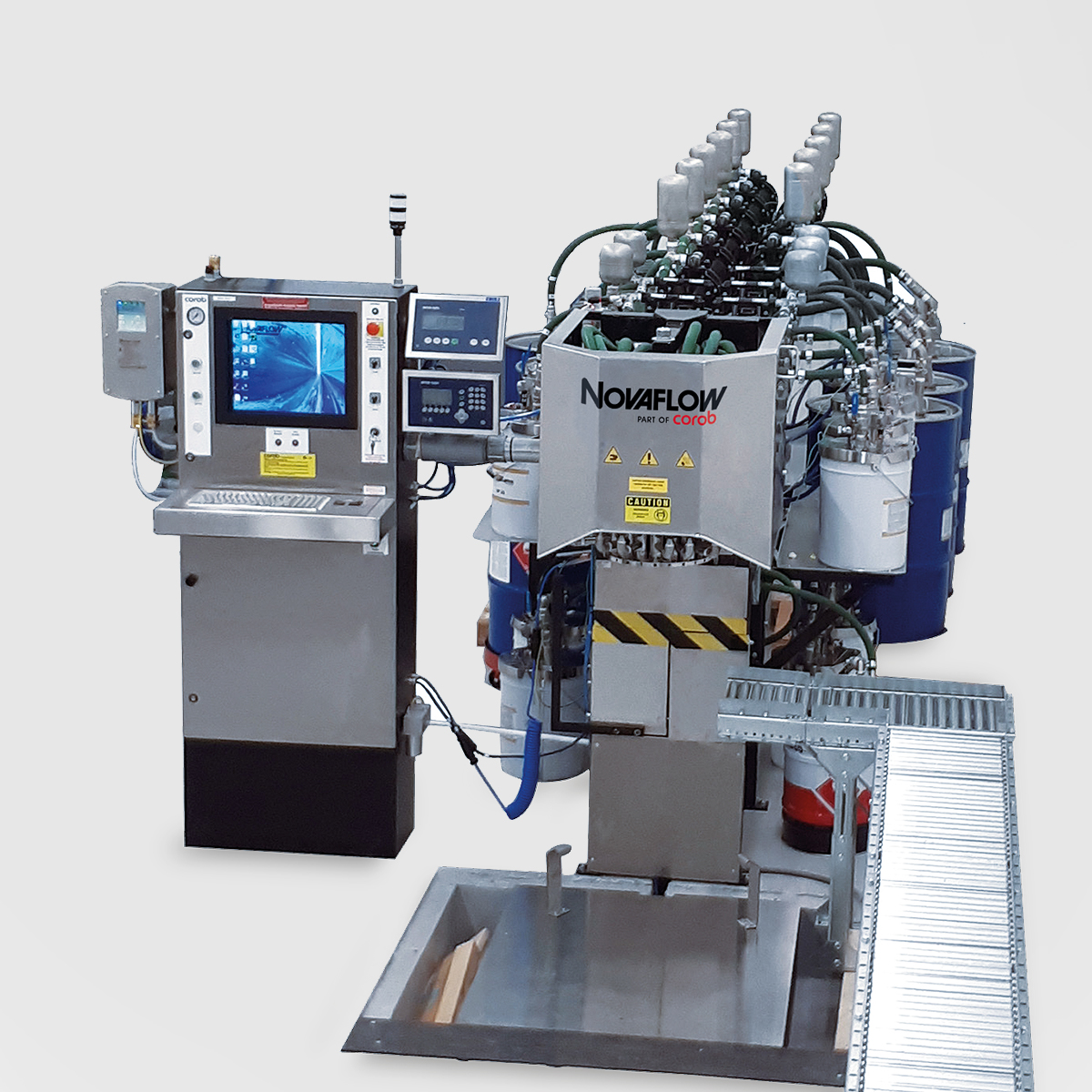

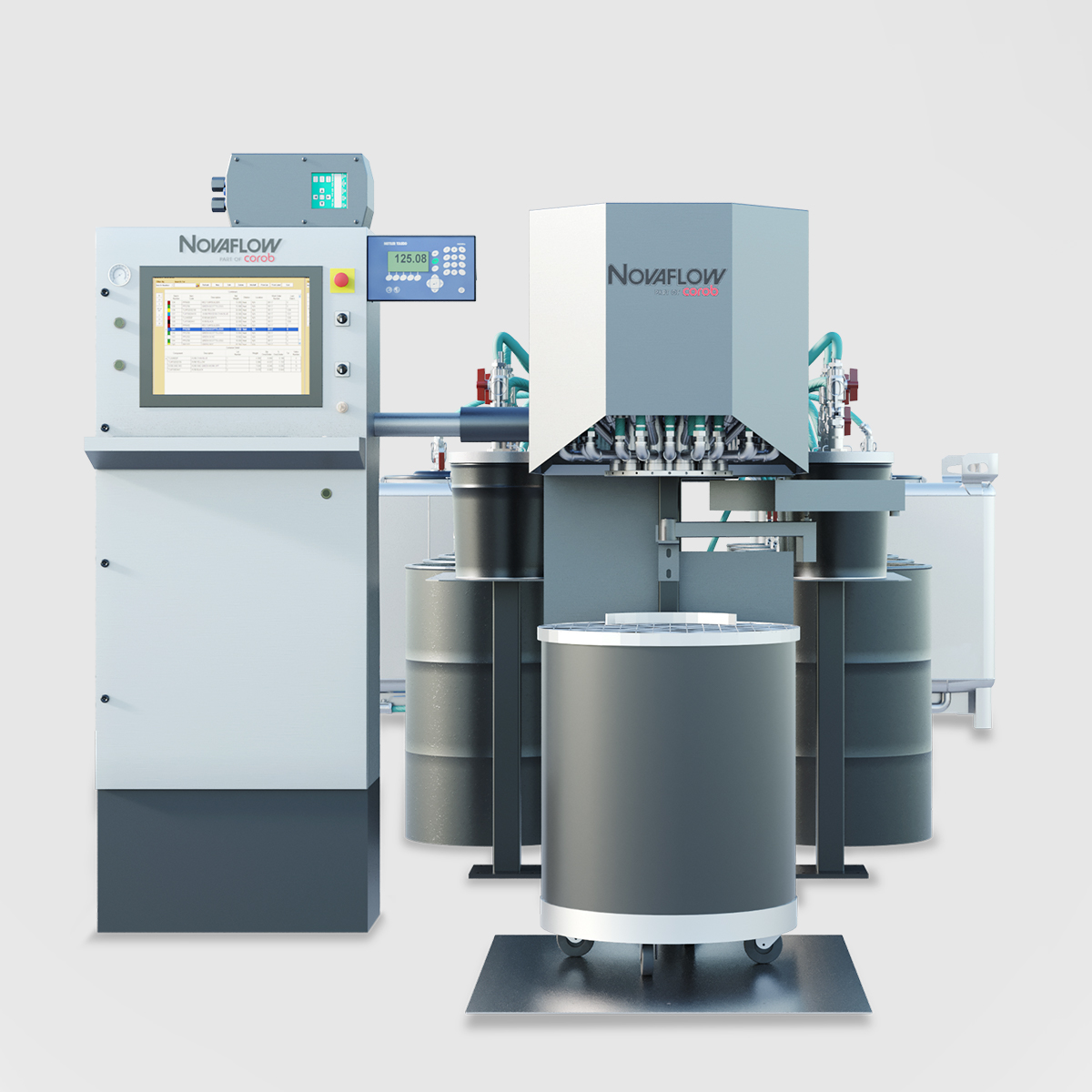

The N50 dispenser family includes high-accuracy, automated weight-based dispensing systems for hazardous environments; the dispensers are electrically grounded and designed to work in a wide variety of hazardous environments including FM Class 1, Division 1, ATEX Zone 1/21 and IECx.

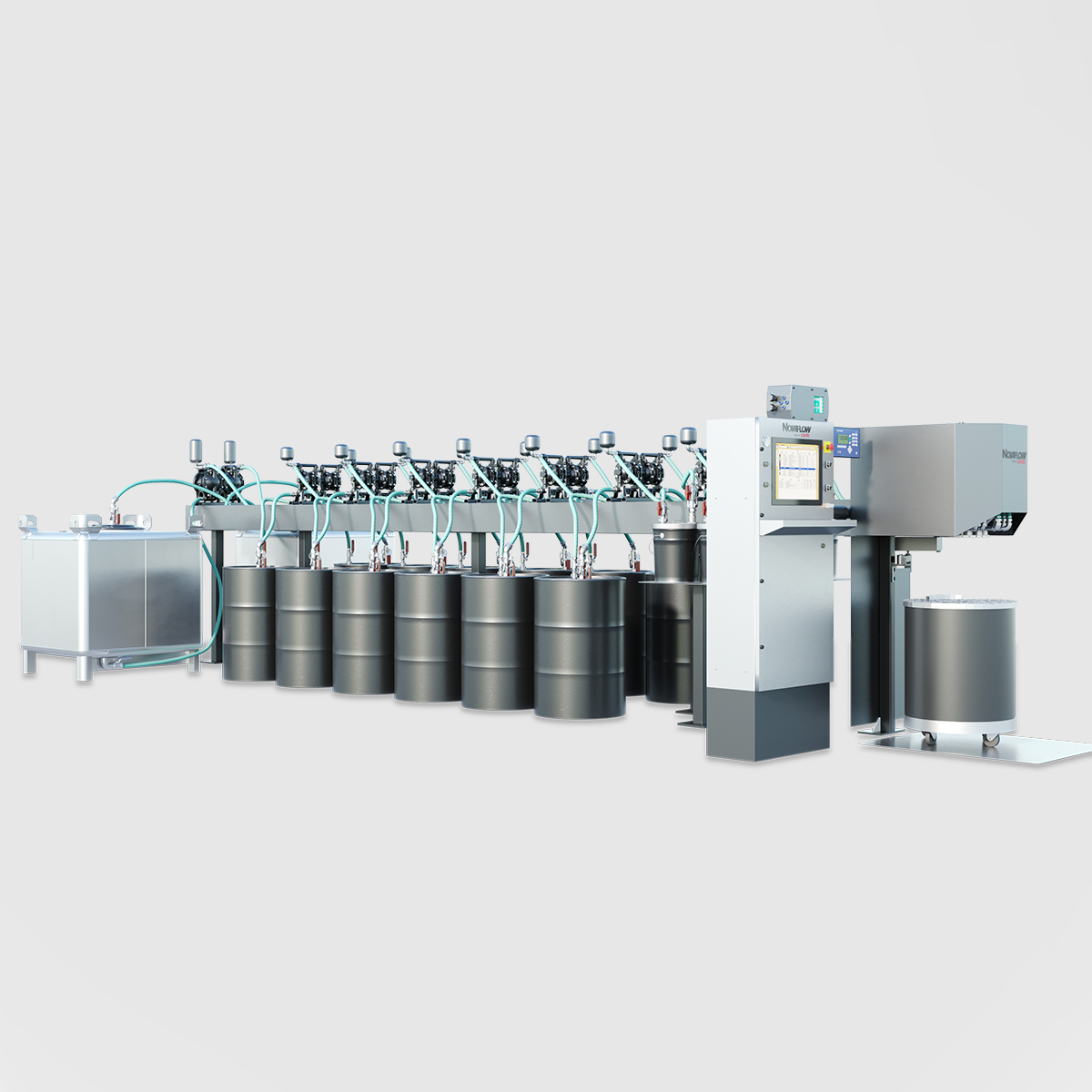

Drawing material from pails, drums, bulk totes, or fixed tanks, the systems can accurately dispense up to 28 components (for a standard configuration) into a wide variety of batch sizes: pails, drums and/or movable vats.

The system can be designed with multiple scales ensuring the highest precision possible regardless of batch size.

The N50 dispensers can fit the SelectFlow two-stage stainless steel valves and/or the MultiFlow three-stage stainless steel valves.

With a multi-valve system, operators can use a smaller valve for ultra-fine dispensing amounts. Both valves optimize dispense speed and dispense accuracy, offering unparalleled accuracy batch after batch.

Technical data

Working Environment Hazardous
Application Solvent based products
Number of valves up to 28
Type of circuits pails and/or drums and/or IBCs
Typical batch size from 20 l to 200 l (from 5 USG to 55 USG)
Performance 3–5 min per 20 l (5 USG) batch
System resolution* starting from ± 0.2 g
Pump size DN12 – 1/2” and larger
Valve type Two-stage, SelectFlow valve (Standard)
Three-stage, MultiFlow valve (Optional)
Valve cleaner Included (semi-auto)
Scale 6 kg – 600 kg (12 lb – 1200 lb)
Cabinet IP55 / NEMA 4x air purged cabinet
Software EMMS + X2
Items included Dell PC
Remote support** Available

* Values highly affected by the nature of the products and their rheological properties. Values dependant on valve size and scale type combination.
** It requires an active data connection.

Note: data refers to machine base configuration, values may vary according to different specifications.
