Reliable, all-around dispensing capability


    Time-efficient with simultaneous dispensing
    Ideal capacity/footprint ratio for low to medium paint volumes
    Results made quick and easy
    Ergonomic dispensing height for small cans

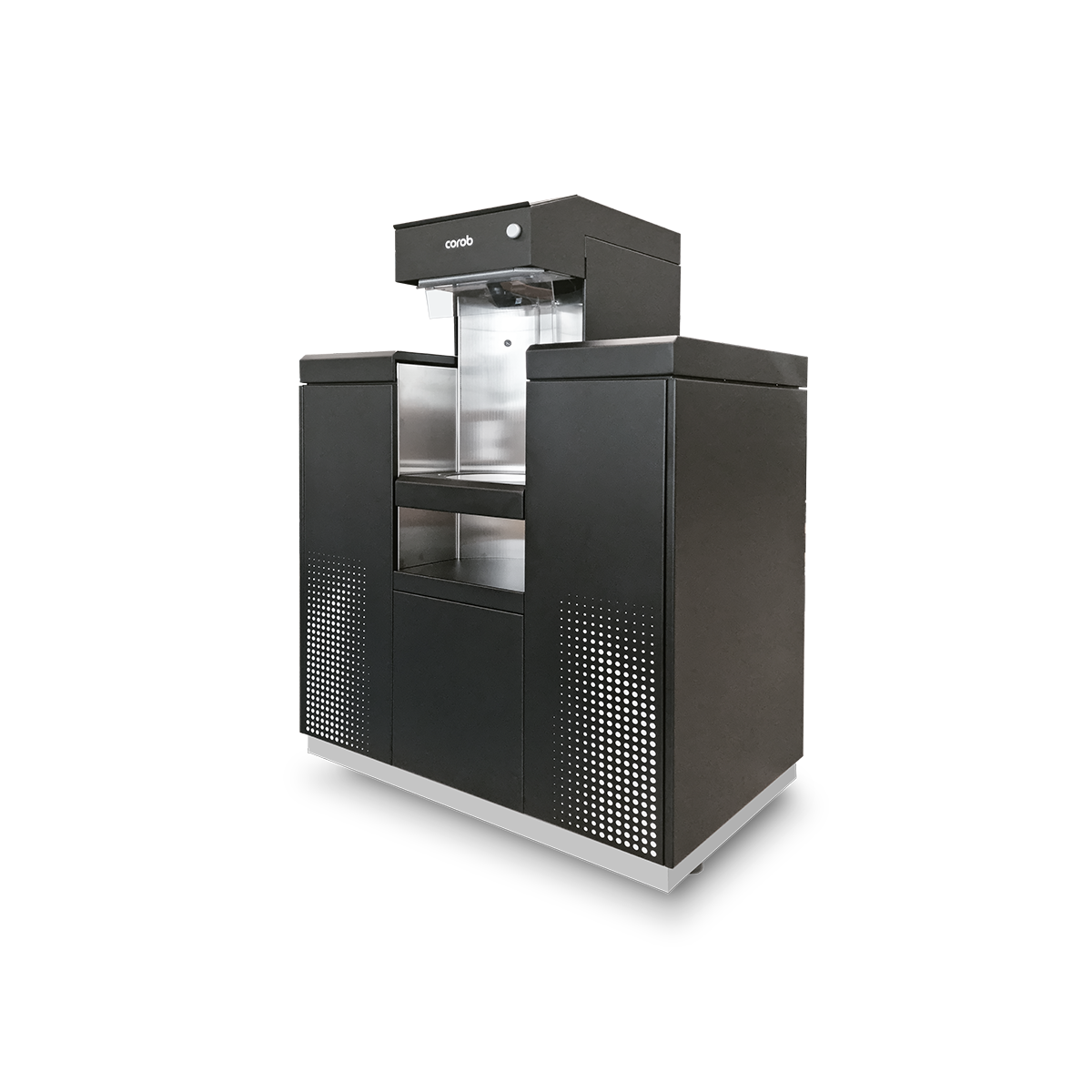

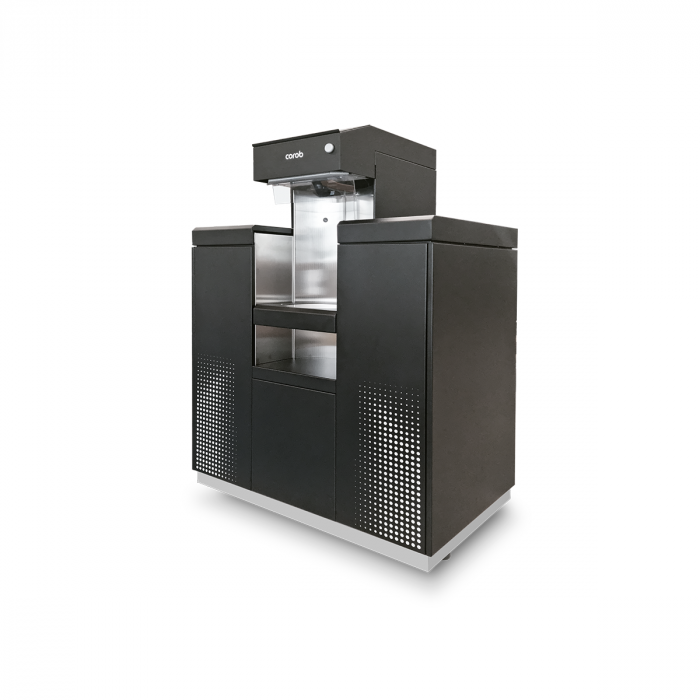

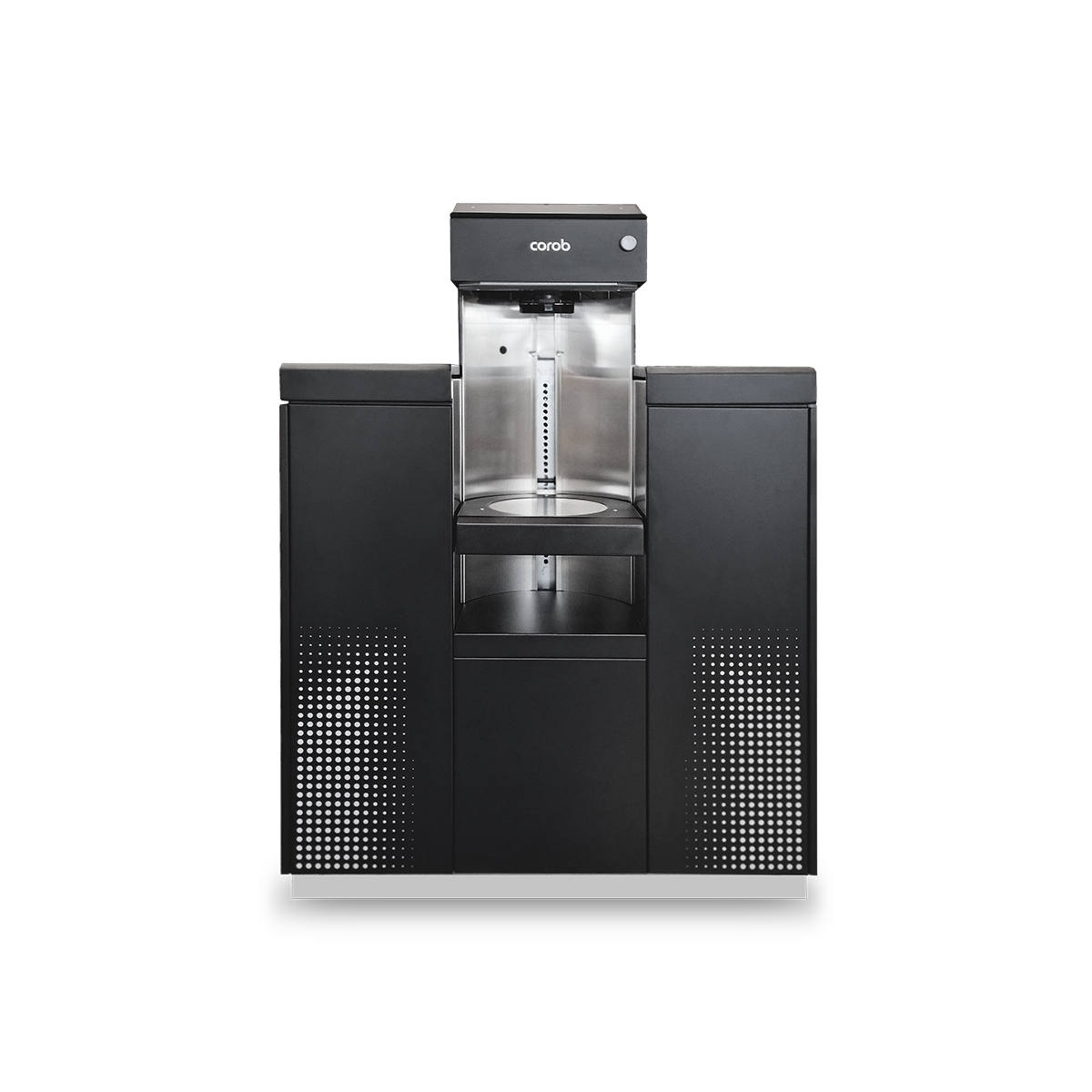

COROB TATOCOLOR is the perfect balance of performance, reliability, and an efficient compact automatic dispenser all in one. It has proven for over twenty years its capability of being an efficient business partner while operating at one of the lowest costs in relation to the high-performance levels delivered.

The compact frame with the higher working level for the can positioning makes it an ideal unit when it is needed to handle small and medium sized cans.

It can host up to 16 colorants in its 3-liter canisters, easily accessible for the refilling operation.

The ergonomics of this model have made it a preferred choice by store associates and users worldwide.

The TATOCOLOR is a very accurate automatic dispenser that combines the performance of a fully simultaneous gear pump dispenser and the reliability of a product with a very robust design.

The central drive gear pump technology and the three-way valve with colorant recirculation guarantee consistent and precise tinting results.

With a wide range of pump sizes available, from the default standard delivering 0.5 liters per minute to the optional LAB size, capable of going down to a resolution of 1/1152 fl.oz., the TATOCOLOR dispenser has been COROB’s most successful laboratory machine ever.

Technical data

Business environment Paint stores, DIYs and Laboratories
Volume output Low / Medium
Dispensing technology Gear pump
Dispensing flow Simultaneous
Circuit flow rate [l/min]* 0.5 [STD] – 0.16 [LAB]
Minimum dispensed quantity [fl.oz.] (cc)* 1/384 (0.077) [STD] – 1/1152 (0.026) [LAB]
Valve type COROB 3-way electric valve (with re-circulation)
Canister configurations Up to 16
Canister sizes [l] (q-G) 3 (3 q)
Colorant compatibility Water, Universal, Solvent
Dimensions HxLxD [mm] (in) 1363 x 950 x 600 (53.7 x 37.4 x 23.6)
Footprint [sqm] (sq ft) 0.57 (6.14)

*Values highly affected by the nature of the colorants and their rheological properties.
