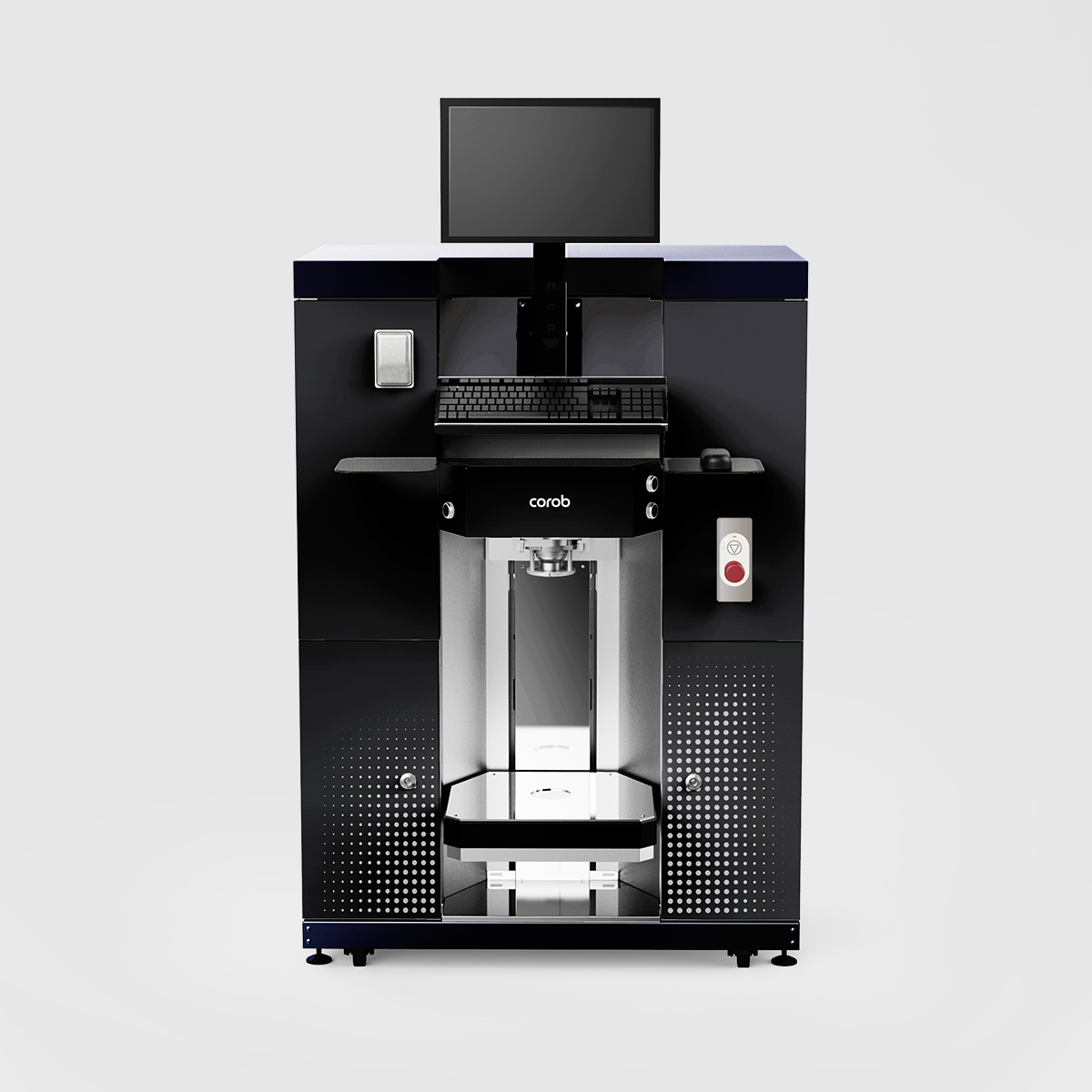

D410x

The flexible medium-sized dispenser

Highlights

  • BUILT TO LAST
    The reliable bellows pump coupled with the latest 5G technology
  • CONVENIENT SPEED
    Simultaneous dispensing at a competitive price
  • EASY HANDLING
    Simplified operations with automatic shelf and puncher options
  • ENERGY SAVING
    Simultaneous dispensing with optimized power consumption

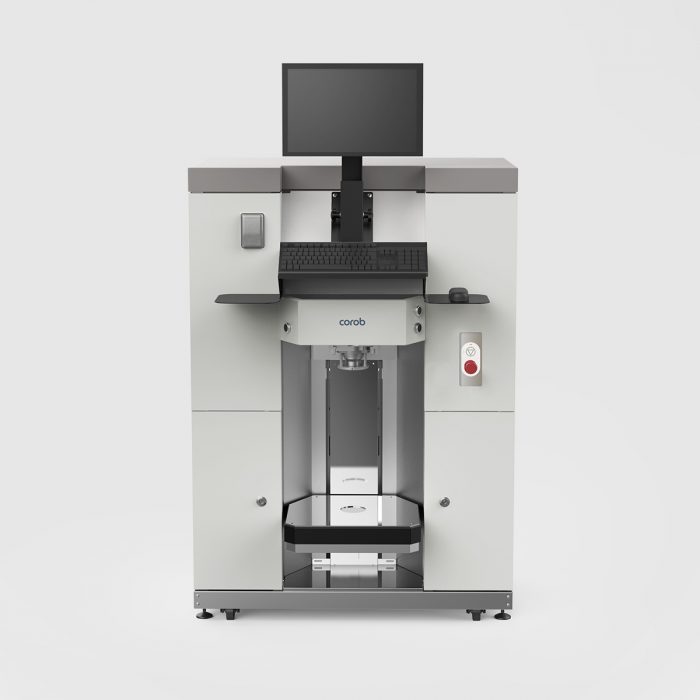

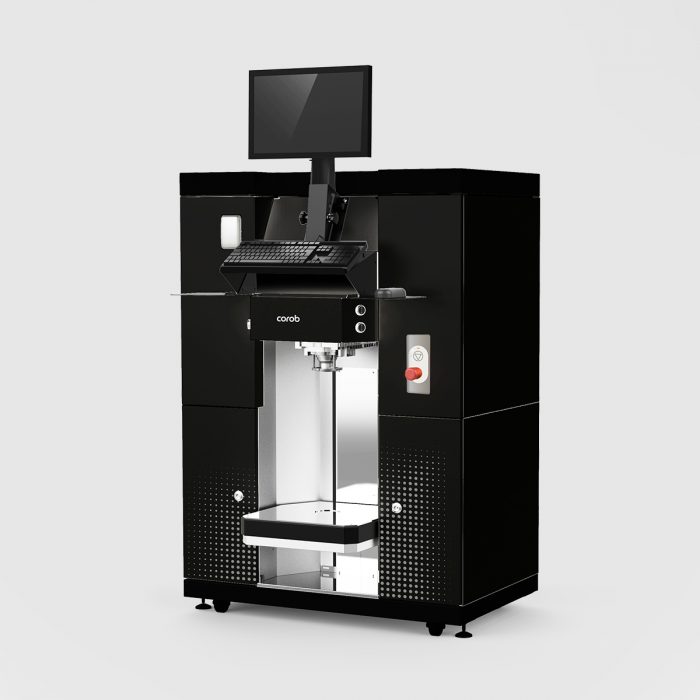

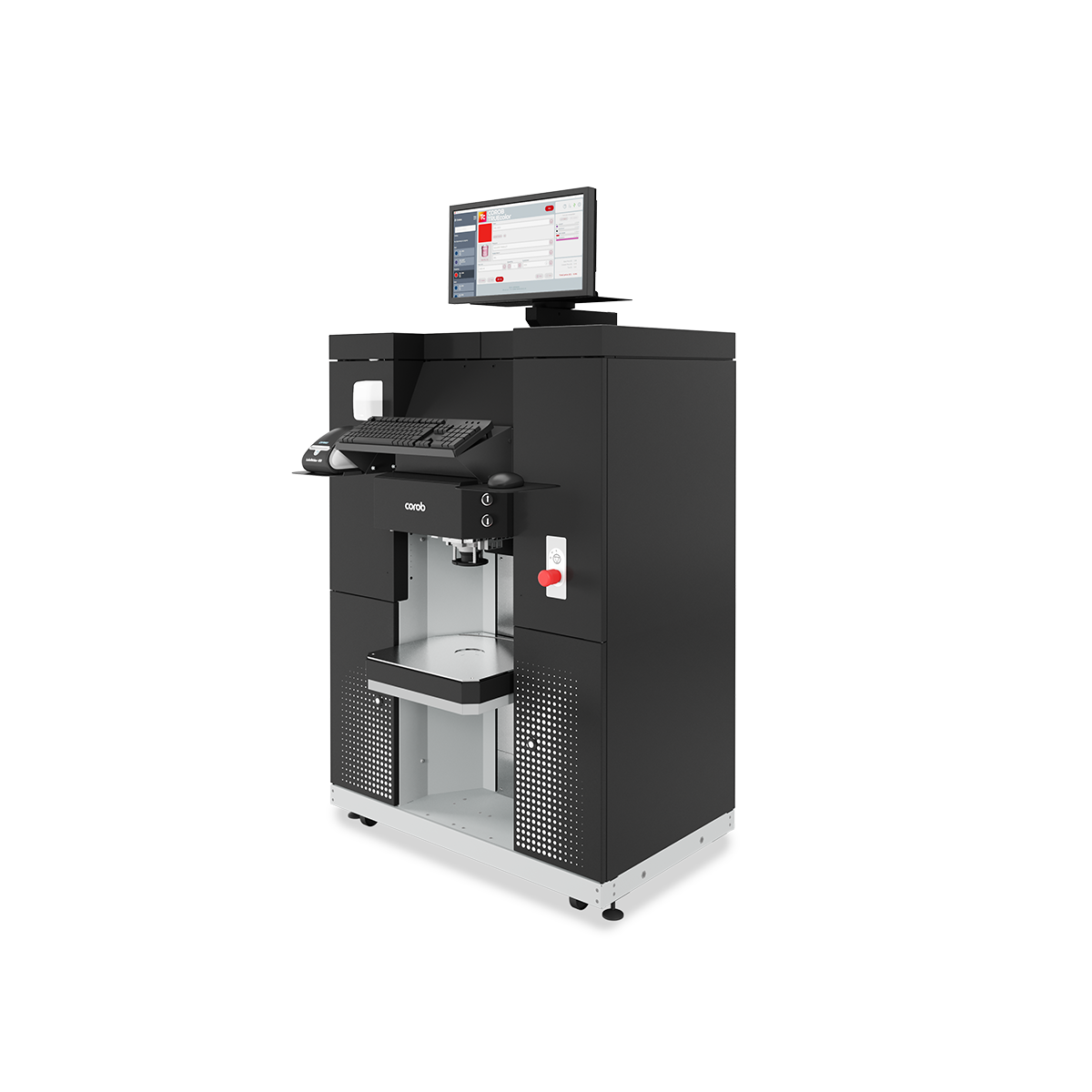

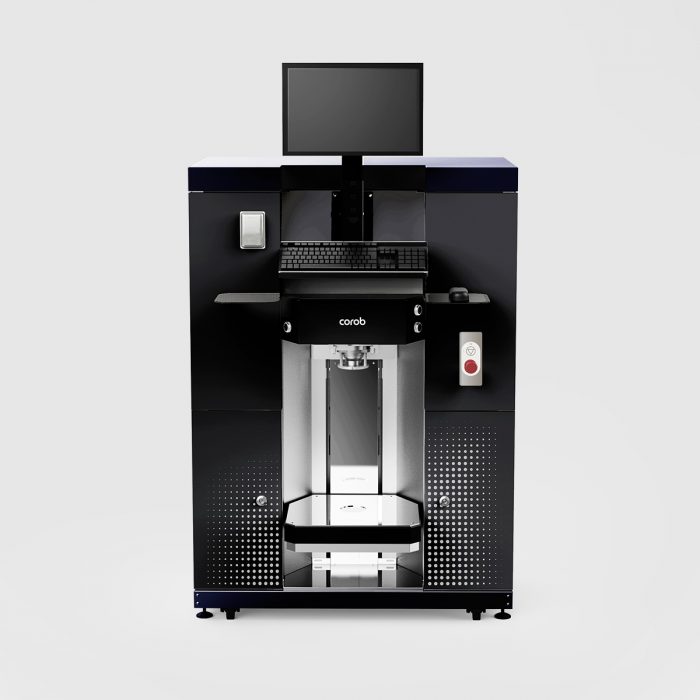

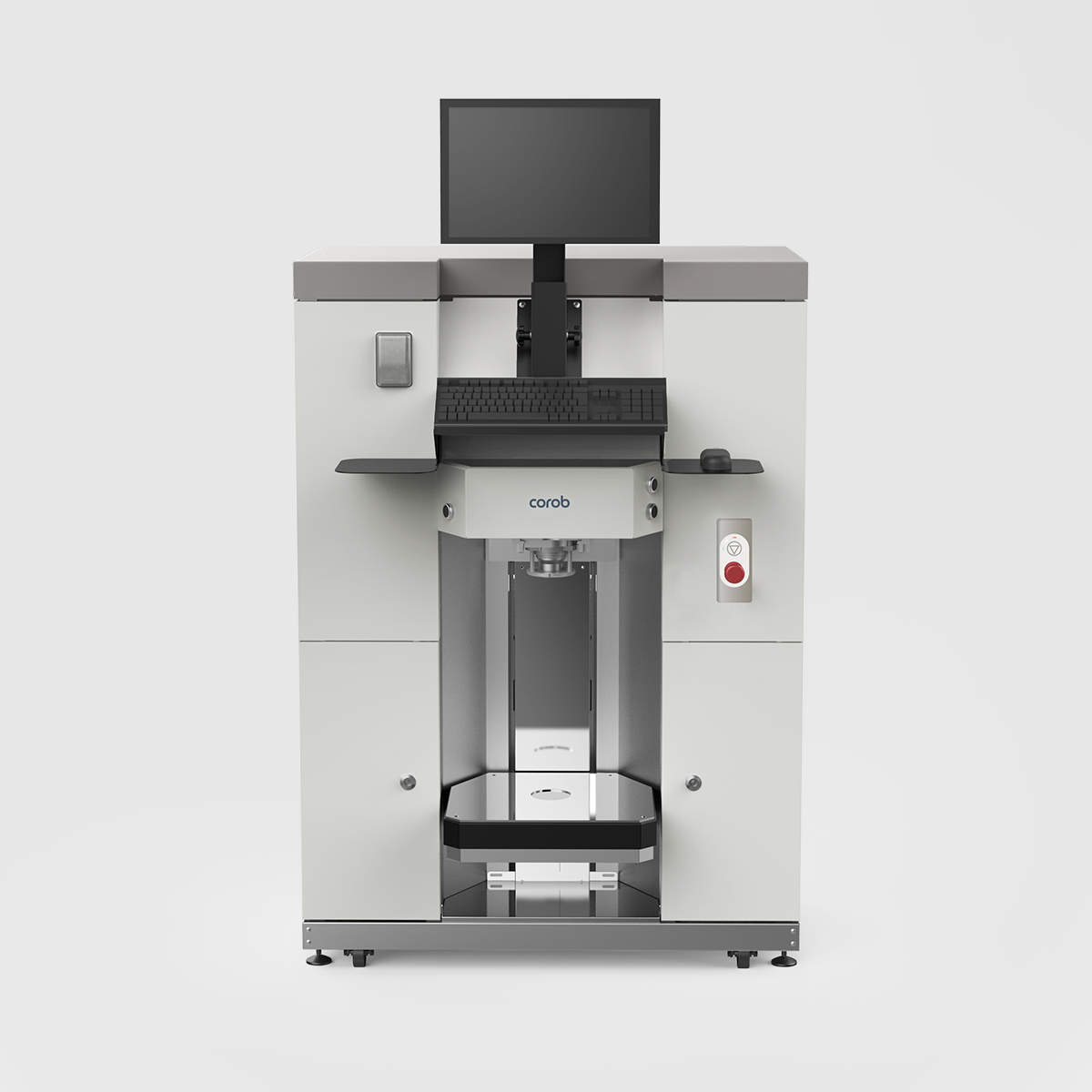

With its dependable, cost-effective, and robust design, the D410x automatic paint dispenser remains a favored choice for paint stores and DIY chains. It has recently undergone a 5G electronics upgrade while retaining its name and signature features that have made it a top-selling dispenser in its segment.

The equipment’s hallmark bellows pump dispensing technology is renowned for providing highly accurate and consistent tinting results. Engineered to eliminate mechanical stress between the pump and colorants, it boasts exceptional durability and offers a lifetime of dependable service without being subject to wear and tear or undergoing replacements.

The COROB D410x is a very accurate automatic dispenser that couples performance with a considerable degree of versatility and configurability.

Consider adopting the energy-saving on-demand simultaneous dispensing default version or upgrading to a fully simultaneous version for faster and larger dispensing capacity, based on your business needs.

The optional automatic shelf is the best solution for accommodating cans of various sizes and moving them effortlessly, while the integrated semi-automatic puncher (optional) provides a safe way to perforate can lids without putting the operator at risk.

Whichever version you choose for your business, be assured the machine is designed for ease of use and workflow efficiency.

Technical data

[S] [M] [L]
Business environment Paint stores, DIYs Paint stores, DIYs Paint stores, DIYs
Volume output Low / Medium Low / Medium Low / Medium
Dispensing technology Bellows pump Bellows pump Bellows pump
Dispensing flow On-Demand Simultaneous / Simultaneous [optional] On-Demand Simultaneous / Simultaneous [optional] On-Demand Simultaneous / Simultaneous [optional]
Circuit flow rate [l/min]* 0.25 [Single pump] – 0.5 [Double pump] 0.25 [Single pump] – 0.5 [Double pump] 0.25 [Single pump] – 0.5 [Double pump]
Minimum dispensed quantity [fl.oz.] (cc)* 1/576 fl.oz. (0.051 cc) 1/576 fl.oz. (0.051 cc) 1/576 fl.oz. (0.051 cc)
Valve type Membrane valve Membrane valve Membrane valve
Canister configurations Up to 20 Up to 24 Up to 32
Canister sizes [l] (q-G) 1.5 (1.58 q) / 2.5 (2.64 q) / 5 (1.32 G) 1.5 (1.58 q) / 2.5 (2.64 q) / 5 (1.32 G) 1.5 (1.58 q) / 2.5 (2.64 q) / 5 (1.32 G)
Colorant compatibility Water, Universal, Solvent Water, Universal, Solvent Water, Universal, Solvent
Dimensions HxLxD [mm] 1380 x 950 x 720 (54.3 x 37.4 x 28.4) 1380 x 950 x 880 (54.3 x 37.4 x 34.7) 1380 x 1250 x 880 (54.3 x 49.2 x 34.7)
Footprint [sqm] (sq ft) 0.69 (7.43) 0.84 (9.04) 1.1 (11.84)

*Values highly affected by the nature of the colorants and their rheological properties.
